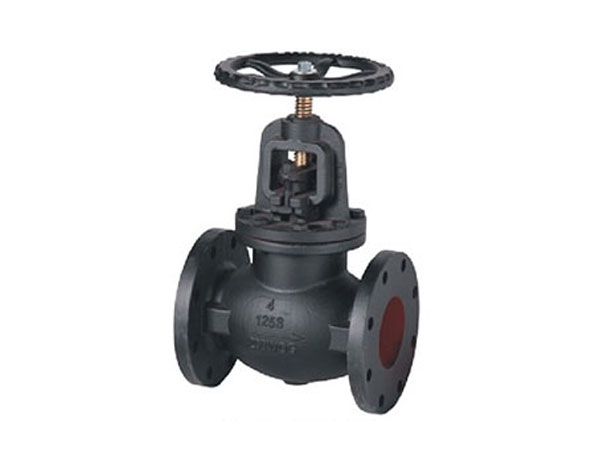

● Design and Manufacture Conform to MSS SP-85
● Flange dimensions Conform to ANSI B16.1
● Face to Face dimensions Conform to ANSI B16.10
● Testing Conform to MSS SP-85
| No. | Part Name | Material |
 |
| 1 | Body | ASTM A126B | |
| 2 | Guide Spindle | 2Cr13 | |
| 3 | Seat | ZCuSn5Pb5Zn5 | |
| 4 | Disc Seal Ring | ZCuSn5Pb5Zn5 | |
| 5 | Disc | ASTM A126B | |
| 6 | Lock Ring | Red Copper | |
| 7 | Disc Cover | HPb59-1 | |
| 8 | Stem | HPb59-1 | |
| 9 | Bonnet Gasket | GRAPHITE+08F | |
| 10 | Bonnet | ASTM A126B | |
| 11 | Bolt | CARBON STEEL | |
| 12 | Packing | GRAPHITE | |
| 13 | Packing Gland | HPb59-1 | |
| 14 | Gland Follower | ASTM A536 65-45-12 | |
| 15 | Stem Nut | ZCuZn38Mn2Pb2 | |
| 16 | Handwheel | EN-GJS-500-7 | |
| 17 | Nut | CARBON STEEL | |
| 18 | Washer | 100HV |
Dimensions data(mm)
| NPS | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| Dn | 51 | 63.5 | 76 | 102 | 127 | 152 | 203 | 254 | 305 |
| L | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 698 |
| D | 152 | 178 | 191 | 229 | 254 | 279 | 343 | 406 | 483 |
| D1 | 120.7 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 362 | 431.8 |
| b | 15.8 | 17.5 | 19 | 23.9 | 23.9 | 25.4 | 28.5 | 30.2 | 31.8 |
| n-d | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 |
| H | 273 | 295 | 314.4 | 359 | 388 | 454 | 506 | 584 | 690 |
| W | 200 | 200 | 255 | 255 | 306 | 360 | 360 | 406 | 406 |
